Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door

Name: Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door
Brand: ESTEL
Price: 1 USD

Wholesale Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door from china suppliers

Brand Name : ESTEL

Model Number : ET6565120-EQ2D

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : T/T etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : wooden case

External Dimension : W×D×H 650×650×1200mm

Material : Hot dip galvanized steel

Color : Anti-corrosion outdoor powder coating grey RAL7032

Protection Grade : IP55

Grounding Protection : copper bar

Cooling : AC220V 50Hz 500W air conditioner and DC48V fans

Cabinet Lock : anti-theft three point lock

Structure : double wall with heat insulation

Equipment Installation Method : 19" rail and equipment tray

Door : one front door and one rear door

Contact Now

Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door For Base Station

Configuration List:

No.	Item	Quantity	Unit	Specs
1	Outdoor Battery Cabinet	1	Set	(1) External Dimension: H×W×D 1200×650×650mm (2) One compartment: equipment compartment, including 19” rail and equipment tray (3)With one front door and one back door,totally 2 doors, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;with 20mm PEF heat insulation between two wall. (5) Ingress Protection: IP55
2	Air Conditioner	1	Set	Cooling capacity: 500W, AC220V, 50HZ;
3	Auxiliary Direct Ventilation Fans	1	PC	DC48V
4	Door Sensor	2	PC	Used for controlling LED lamp on/off
5	LED Lamp	2	PC	48V LED lamps (immovable), with protective circuit breaker
6	Package	1	Set	Wooden Case

Environment conditions:

1. Temperature:

Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

2. Relative Humidity: 5% ~ 100%

3. Air Pressure

4. 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

5. Solar Radiation Intensity: 1124 × (1±5%)W/m2

Packing

Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door

Other Cabinet Project

Product Tags:

outdoor communication cabinets

outdoor telecom enclosure

Outdoor Equipment Cabinet With Front Door

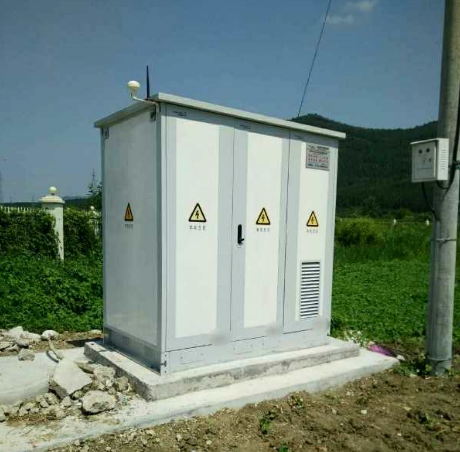

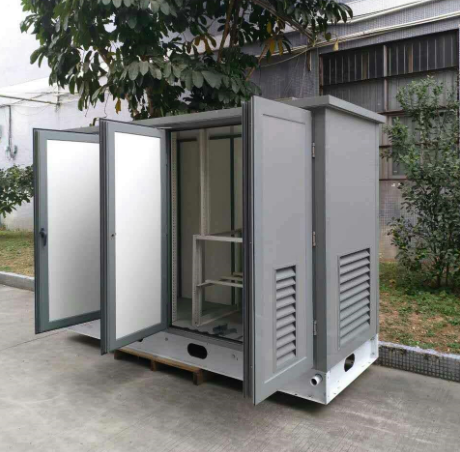

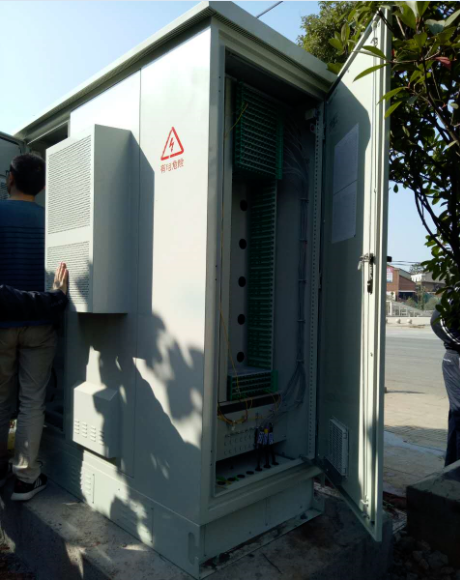

Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door Images
