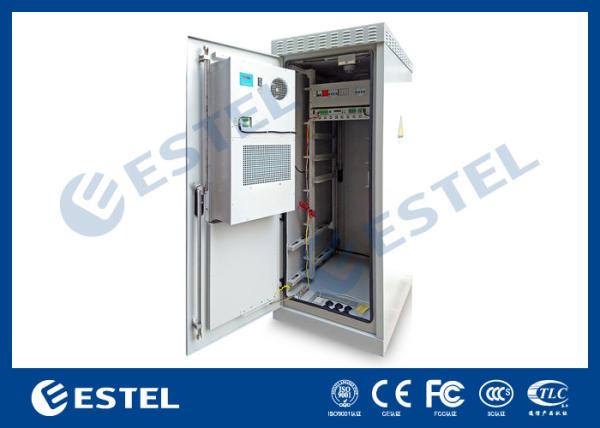

Custom Outdoor Telecom Cabinet , Telecom Equipment Cabinet With Air Conditioner

Brand Name : ESTEL
Model Number : ET77100200
Certification : ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin : Shenzhen, China (Mainland)
MOQ : 1 set
Price : negotiation
Payment Terms : L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability : 3,000 sets per month
Delivery Time : 15-20 working days
Packaging Details : wooden case
Internal Size : W×D×H 770×1000×2000mm
Cable Entry : at cabinet bottom
Cooling : Air Conditioner and Heat Exchanger Integrated Unit
Structure : double wall, with insulation, sandwich structure
Door : one front door and one back door
Insulation : PEF
Contact Now

Custom Outdoor Telecom Cabinet , Telecom Equipment Cabinet With Air Conditioner


Quick Details


Place of Origin: Shenzhen, China (Mainland)External Size W×D×H 770×1000×2000mm

Brand Name: ESTEL

Structure: double wall, with insuation, sandwich structure

Model Number: ET77100200

Cabinet Layout: one compartment, for installing 19” equipment

Product Name: Outdoor Telecom Equipment Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base stationCable Entry: at cabinet bottom
Material: galvanized steelIllumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: air conditioner and heat exchanger Integrated Unit

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, environment monitoring system

Payment & Shipping Terms


Minimum Order Quantity:1 set
Price:negotiation
Payment Terms:L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability:7,200 sets per month
Delivery Time:15-20 working days
Packaging Details:wooden case

1. Specifications

(1) Technical Parameters


ItemTypeTechnical Parameter
StructureDimensionExternal Dimension W×D×H 770×1000×2000mm
LayoutOne compartment
Equipment Installation Method19” standard rack
Door

With one front door and one back door,

and anti-theft three point lock for outdoor cabinet (support padlock)

Material

1.Galvanized steel;

2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls

StructureAssembled
Ingress ProtectionIP55
Temperature ControlCoolingAir Conditioner and Heat Exchanger Integrated Unit
LightingLED lamp48V LED lamp
TemperatureTemperatureWorking Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
HumidityRelative Humidity5% ~ 100%
PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation IntensitySolar Radiation Intensity1124 × (1±5%)W/m2

Accessories List


No.ItemQuantityUnitSpecs
1Outdoor Telecom Cabinet1Set

(1) External Dimension W×D×H 770×1000×2000mm;

(2) One compartment;

(3) With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm heat insulation between two walls

2Air Conditioner and Heat Exchanger Integrated Unit1Set

Cooling Capacity: 1500W

Heat Exchange Capacity; 80W/K

Power Supply: AC220V, 50Hz

Model:KR06-150JSH/01

3Power Distribution Unit1Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

4Environment Monitoring System1Set

1× environment monitoring unit;

1× smoke sensor,

1×water sensor,

1× temperature&humidity sensor,

2× door sensor

5LED Lamp1SetDC48V
6Package1SetWooden Case

2. Application Scope


The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.


3. Cabinet Introduction

3.1 Cabinet Material


The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 40mm PEF. The cabinet is assembled type.

3.2 Cabinet Structure


The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner and heat exchanger integrated unit on cabinet door.

3.3 Cabinet Door and Lock


The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

4. Features


4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

4.2 The cabinet cooling uses heat exchanger and air conditioner integrated unit.

4.3 Including -48VDC illumination lamp.

4.4 The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.

4.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

4.6 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

4.7 The cabinet uses assembled structure, easy for installation.

4.8 The cabinet includes 19” standard installation rack.


5. Technical Specs


  • Material: quality galvanized steel
  • Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
  • Cabinet load bearing: ≥600kg
  • Ingress protection: IP55
  • Flame retardance: comply with GB5169.7 test A
  • Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
  • Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
  • Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.

Dimension Diagram


Cabinet External Dimension (W×D×H): 770×1000×2000mm.




6. Sensors Installation


6.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.



6.2 Water sensor is installed at the bottom of the cabinet.



7. Wire Routing Design


Feeder cable and other external cables all use bottom wiring method.



8. Grounding Protection


  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

9. Theft Proof Design

9.1 Door lock theft proof design

  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.


  • Three point lock

9.2 Connection and Fastening


  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.


10. Packing and Shipping



Our Delivery Agent


The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.


11. Our Contact Information


Mobile Phone: 0086-13752765943

Telephone: 0086-0755 66600941

Email: info@estel.com.cn

lxf.estel@hotmail.com
Skype: fiona.liang10
