Integrated External Electrical Cabinets Anti Corrosion Outside Enclosures


Quick Details:


Place of Origin: Shenzhen, China (Mainland)

External Size H×W×D 1550×800×800mm

Internal Size H×W×D 1300×700×700mm

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure

Model Number: ET8080155

Cabinet Layout: one compartment, for installing 19” equipment

Product Name: Outdoor Telecom Equipment Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base stationCable Entry: at cabinet bottom
Material: galvanized steelIllumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: AC220V air conditioner (other option: DC48V heat exchanger) and DC48V fans

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, environment monitoring system

Payment & Shipping Terms:


Minimum Order Quantity:1 set
Price:negotiation
Payment Terms:L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability:6,000 sets per month
Delivery Time:10-20 working days
Packaging Details:wooden case

1. Specifications

(1) Technical Parameters


ItemTypeTechnical Parameter
StructureDimension

External Dimension H×W×D 1550×800×800mm;

Internal Dimension H×W×D 1300×700×700mm

LayoutOne compartment
Equipment Installation Method19” standard rack
DoorWith one front door; with special lock for outdoor cabinet (support padlock)
MaterialGalvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
StructureAssembled
Ingress ProtectionIP55
Temperature ControlCooling

Two Options:

(1) AC220V 500W air conditioner and fans;

(2)DC48V 80W/K heat exchanger and fans

LightingLED lamp48V LED lamp
TemperatureTemperatureWorking Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
HumidityRelative Humidity5% ~ 100%
PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation IntensitySolar Radiation Intensity1124 × (1±5%)W/m2

Accessories List


No.ItemQuantityUnitSpecs
1Outdoor Telecom Cabinet1Set

(1) External Dimension H×W×D 1550×800×800mm ;

Internal Dimension H×W×D 1300×700×700mm. (2) One compartment;

(3) With one front door; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

2Two OptionsAir Conditioner1Set

Cooling Capacity:500W,

Power Supply: AC220V, 50Hz.

Heat Exchanger1Set

Heat Exchanger: 80W/K,

Power Supply: DC48V.

3Fans2PC12038, DC48V
4Power Distribution Unit (Optional)1Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

5Environment Monitoring System (Optional)1Set

1* environment monitoring unit;

1* smoke sensor,

1* water sensor,

1* temperature&humidity sensor,

2* door sensors.

6Led lamp1SetDC48V
7Package1SetWooden Case

Cabinet Layout



2. Description


The cabinet is one compartment cabinet. The cabinet cooling use air conditioner (or heat exchanger) and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.

2.1 Cabinet Material


The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

2.2 Cabinet Structure


The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner or heat exchanger and fans, installed on front door.

2.3 Cabinet Door and Lock


The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

2.3.1 Door lock theft proof design


  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.


  • Three point lock

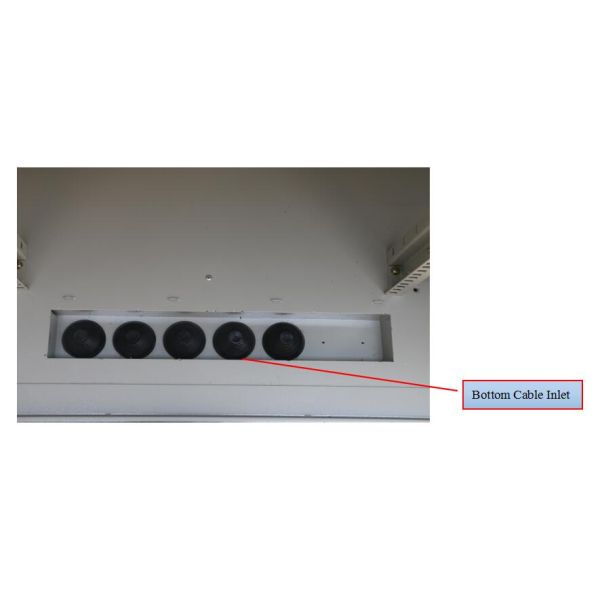

2.4 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.


2.5 Grounding Protection

  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.


2.6 Connection and Fastening

  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

2.7 Appearance and Surface Treatment


Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.


3. Applications


The ET8080155 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
